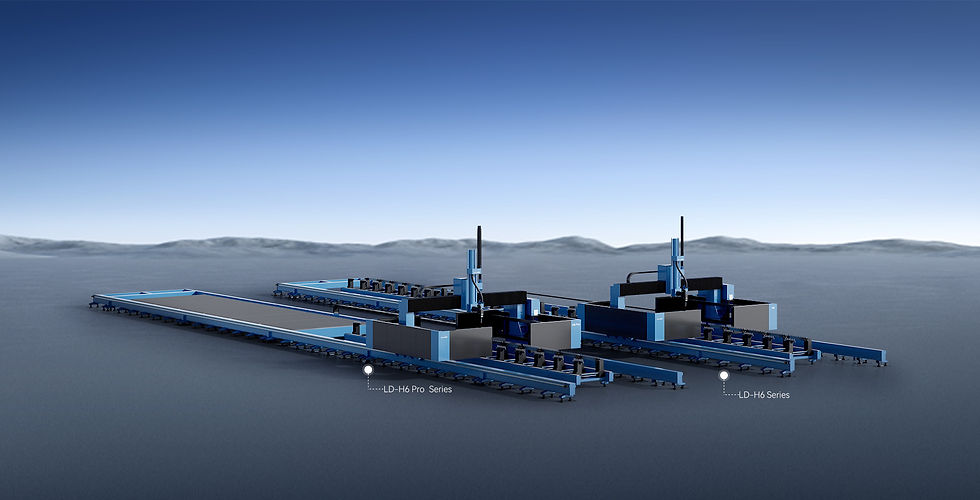

LD-H Series
H-section Steel Fiber Laser Cutting Machine
Segmented Bed
The segmented bed design is convenient for transportation
and the coaxial processing ensures the running accuracy.
Rail Rack and Pinion
Original factory assembly;
Ensure tested quality through 100% maximum inspection;
Adjust the gap between the spur gear and the rack by aligning the gears and marking the high points; Having unique actual operational accuracy;
Cutting Head
High rigidity harmonic reducer, excellent impact and vibration resistance, torsional stiffness up to 2300N.m, effectively reducing the risk of collision and shutdown for maintenance. High-precision harmonic drive, absolute positioning accuracy up to 10 arc seconds (0.0028 degrees), true zero backlash.
Intelligent Bus Cutting System
Further improve the speed and efficiency of the frog jump function, integrate fast and intelligent perforation mode, fast and intelligent knife collection mode, the system runs smoothly and efficiently
Technical Parameter
Machine Model
LD-H5
LD-H6
Laser power
LD-H5: 12000W-30000W
LD-H6: 12000W-30000W
Z-axis maximum travel
LD-H5: 700mm
Dimensions
LD-H5: 35000*4550*3000mm
LD-H6: 32000*7000*3700mm
X-axis maximum travel
LD-H5: ≥1500mm
X-axis acceleration
LD-H6: 0.5G
Processing range
LD-H5: 150mm≤h≤1000mm 100mm≤b≤400mm
LD-H6: 150mm≤h≤1000mm 100mm≤b≤400mm
Sheet metal processing range
LD-H6: 3000*25000mm
Y-axis maximum travel
LD-H5: ≥26000mm
Y-axis acceleration
LD-H6: 0.5G
